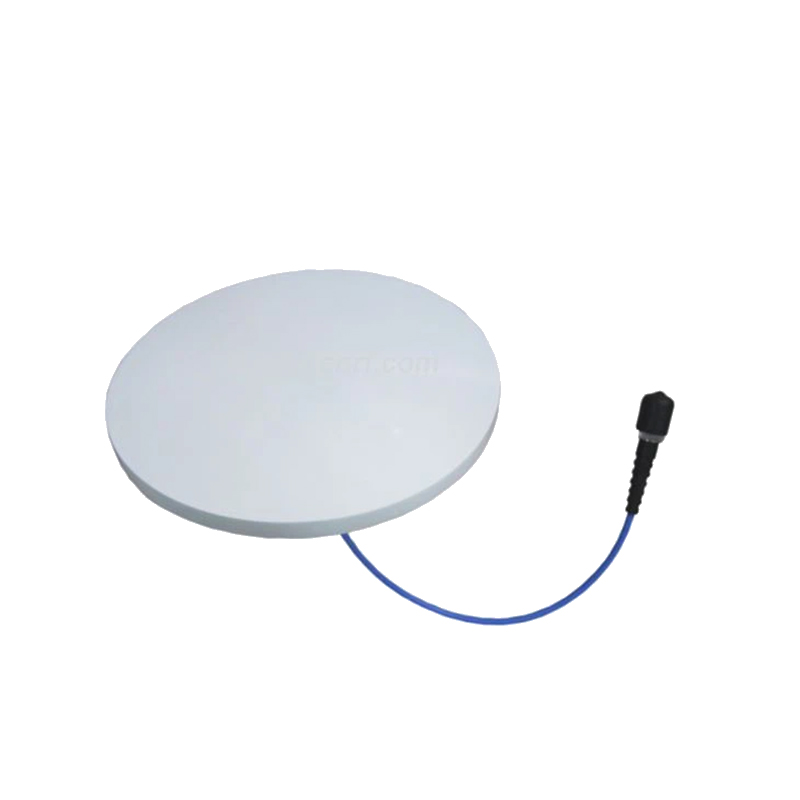

5G RF Ceiling Antenna 698-4000MHz
VSWR:≤1.5
Horizontal polarization
Indoor Application
N-Female or 4.3-10 female
O-Ceiling Mount Design
Send Inquiry
Product Details of5G RF Ceiling Antenna 698-4000MHz
5G RF Ceiling Antenna 698-4000MHz Description
Features:
Excellent Electrical Performance
Wide Frequency Range
Totally Maintenance Free
Specifications
| Frequency Range(MHz) | 698-806 | 806-960 | 1710-3800 |
| Gain(dBi) | 2.2±0.5 | 3.5±0.5 | 4.5±1.0 |
| VSWR | ≤1.5 | ≤1.5 | ≤1.5 |
| Polarization Type | Horizontal polarization | ||
| PIM(IM3) | ≤-150dBc @ 2x2W | ||
| Max Power | 50W | ||
| Input Impendence | 50Ω | ||
| Radome Material | Uv-Protected ABS | ||
| Connector Type | N-Female | ||
| Mounting Type | Ceiling Installation | ||
Product Dimension

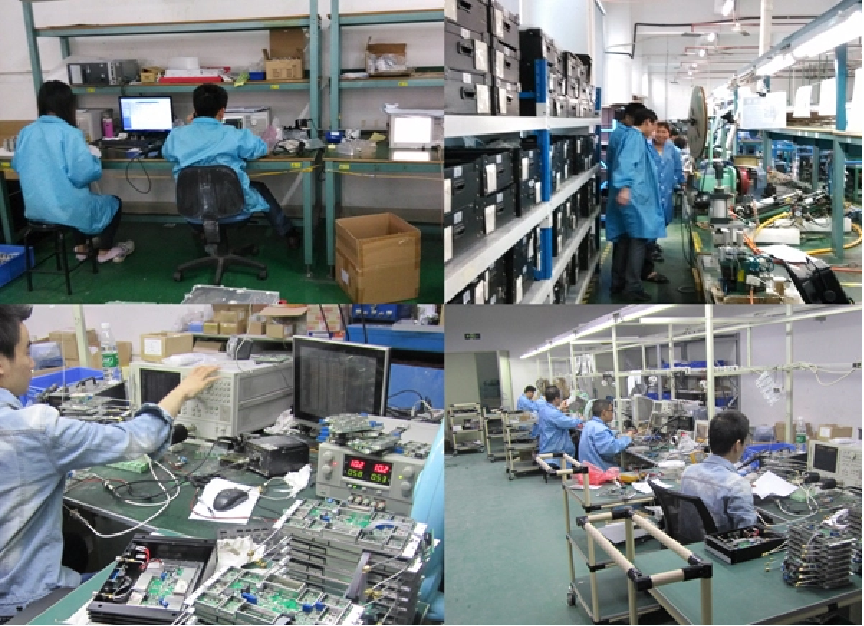

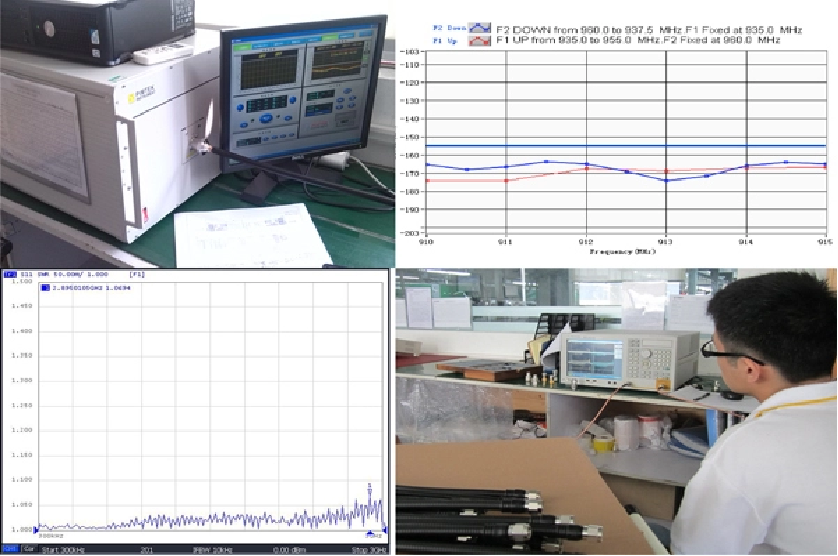

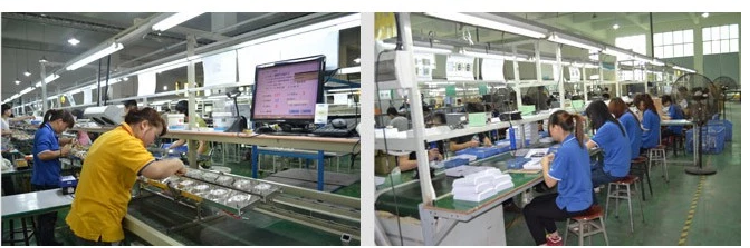

Strict Quality Control:
1. Ensure Each product tested on production lines.
2. Professional and skilled workers.
3. Clear testing procedures.
4. Trustworthy teams and QC checking.
FAQ
